Products / BPU100

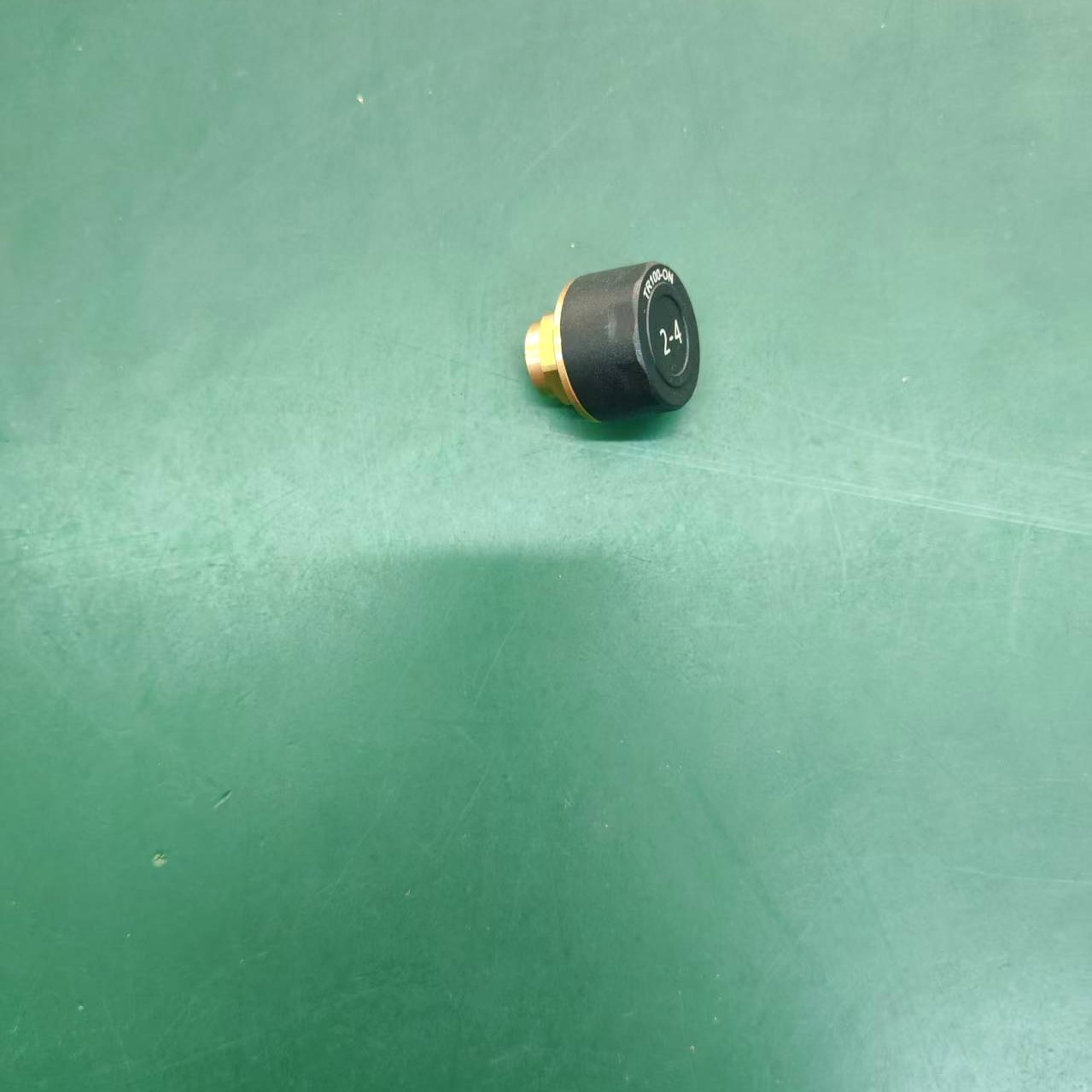

BPU100 Motorcycle BLE Tire Pressure Sensor
A Bluetooth Low Energy tire pressure and temperature sensor built for motorcycle, e-bike and light-vehicle dashboards. It pairs straight to the head unit — no extra receiver, no wiring.
Plug-and-play for volume programs
- Pairs over BLE 4.1 — connects to existing CarPlay head units and motorcycle dashboards. No additional receiver.
- Replaceable CR1632 — the owner swaps the coin cell without tools and without re-pairing.
- Low power — designed for long maintenance-free service intervals.
- Wide temperature — −20 °C to +80 °C operating, suited to outdoor riding in all seasons.
- OEM/ODM flexible — protocol, housing, packaging and pairing flow can be customised for your dashboard ecosystem.
Specifications
| Model | BPU100 |
| Bluetooth | BLE 4.1 |
| TX power | 3 dBm |
| Frequency band | 2400 – 2483.5 MHz |
| Data rate | 1 Mbps |
| RX sensitivity | −95 dBm @ 1 Mbps |
| Power | CR1632 coin cell (replaceable) |
| Operating temperature | −20 °C ~ +80 °C |
| Storage temperature | −40 °C ~ +85 °C |
| Humidity | 5 – 95 % non-condensing |
| Monitors | pressure (bar) + temperature (°C) + alarms |
Variants
| Variant | Description |
|---|---|
| BPU100 Standard | universal motorcycle / e-bike fitment |
| BPU100 Built-in | sealed internal battery, non-replaceable |
| BPU100 Large-Vehicle | for larger tire sizes and higher volumes |
| BPU100 Wide-Temp | extended operating temperature range |
Who it is for
- Motorcycle CarPlay / Android Auto head-unit makers
- Motorcycle dashboard and DVR manufacturers adding a TPMS feature
- Aftermarket distributors and private-label programs
- E-bike and light electric vehicle brands
Monthly output for this line exceeds 30,000 sensors, so repeat volume programs and scheduled deliveries are realistic.
Ask for samples and a price break
Tell us your target quantity and host device; we will send the pairing protocol and a quotation.
