S
Safety
Real-time detection of slow and fast leaks, overheat and overpressure. Alarm output can be wired into an interlock to limit speed on low pressure.
Products / TR100
TR100 Industrial TPMS
An industrial-grade tire pressure and temperature monitoring system for port machinery, mining trucks and heavy-duty vehicles. Built to talk to the machine's own controller over CAN, RS485, Profinet, RS232 or Modbus — and to reach the cloud when you need it.
Four parts, one self-developed chain
| Component | Function | Location |
|---|---|---|
| Sensor | Reads pressure and temperature, transmits over 433.92 MHz | Valve stem / rim, inside or outside the tire |
| Receiver | Collects all sensors and outputs to the vehicle bus or a display | Electrical cabinet or cab |
| Repeater | Extends radio coverage past long chassis and metal structures | Mid-chassis or unobstructed points |
| Display | Shows every wheel's pressure and temperature in real time | Cab |
Four reasons fleets fit it
E
Economy
Correct inflation extends tire life by a reported 20–30 %, cuts fuel burn and avoids unplanned downtime.
F
Efficiency
Replaces manual walk-around checks with continuous automatic monitoring and visual alarms.
I
Intelligence
Multi-bus output plus an optional 4G gateway for fleet dashboards, history and utilisation reporting.
Technical parameters
Receiver
| Sensors supported | up to 256 (A/C models) · 42 (D model) |
| Interfaces | CAN 2.0B · RS232 · RS485 · UART · (4G CAT.1 optional) |
| CAN baud rate | 250 kbps default, software-adjustable |
| Data period | 500 ms |
| Supply voltage | DC 10–30 V |
| Ingress protection | IP68 · sealed connector (B+ / GND / CANH / CANL) |
| RF range | ≥ 100 m open air · ≥ 8 m in-tire |
| Display (A model) | 7" colour LCD, Bar/PSI & °C/°F switchable, monitors vehicle battery voltage |
| Alarms | high/low pressure · high temperature · fast leak · sensor fault · low sensor battery |
Sensor (internal / external valve)
| Sensor types | Internal strap · internal built-in valve · external screw-on (8V1 / 12V1) · external with OTR extension valve · optional tee |
| Pressure range | 0–4.5 / 0–9 / 0–13 bar by application · display resolution ±0.1 bar |
| Accuracy | pressure ±7 kPa · temperature ±3 °C |
| Working temperature | internal −40 ~ +125 °C · external −20 ~ +85 °C |
| RF | 433.92 MHz · TX ≤ 8 dBm · alarm report ≤ 5 s, normal report ≤ 5 min |
| Battery | internal ≥ 5–6 years (sealed) · external ≥ 2 years (CR1632, replaceable) |
| Chip & protection | Infineon sensor chip · IP68 · anti-corrosion, vibration-proof, automotive-grade |
| Optional repeater | extends RF range for long vehicles / RTG · automatic trailer swap · DC 10–30 V, IP68 |
Repeater
| Relay distance | ≥ 100 m |
| TX power | ≤ 20 dBm |
| Supply voltage | 9–35 V DC |
| Ingress protection | IP67 |
| Operating temperature | −20 °C ~ +85 °C |
Display & gateway
| Display | 7" 800 × 480, DC 9–35 V, IP65 |
| Gateway (optional) | 4G DTU / T-Box, cloud uplink |
| Cloud platform | fleet dashboard, alarms, history, open API |
| Configurator | handheld configurator (CAN) |
What the hardware looks like
Sensor variants, the radio receiver and repeater, and the 7" cab display. Threaded brass valve bodies are available for external fitment; strap and internal versions cover the other mounting cases.

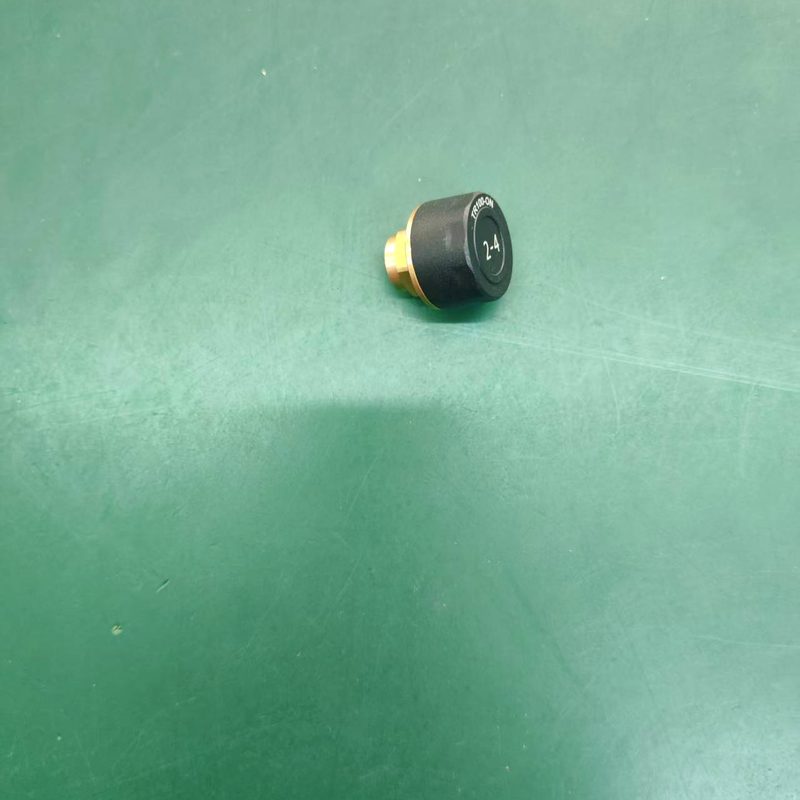

External valve sensor — brass thread, replaceable battery, IP67/IP68.

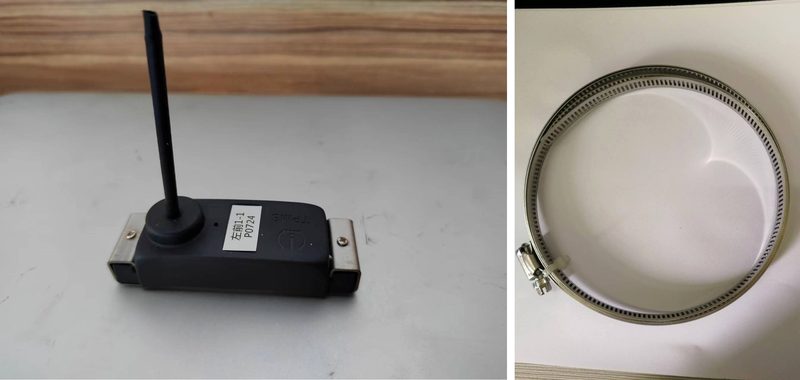

Strap-mounted sensor — for rims where no valve-stem fitment is possible.

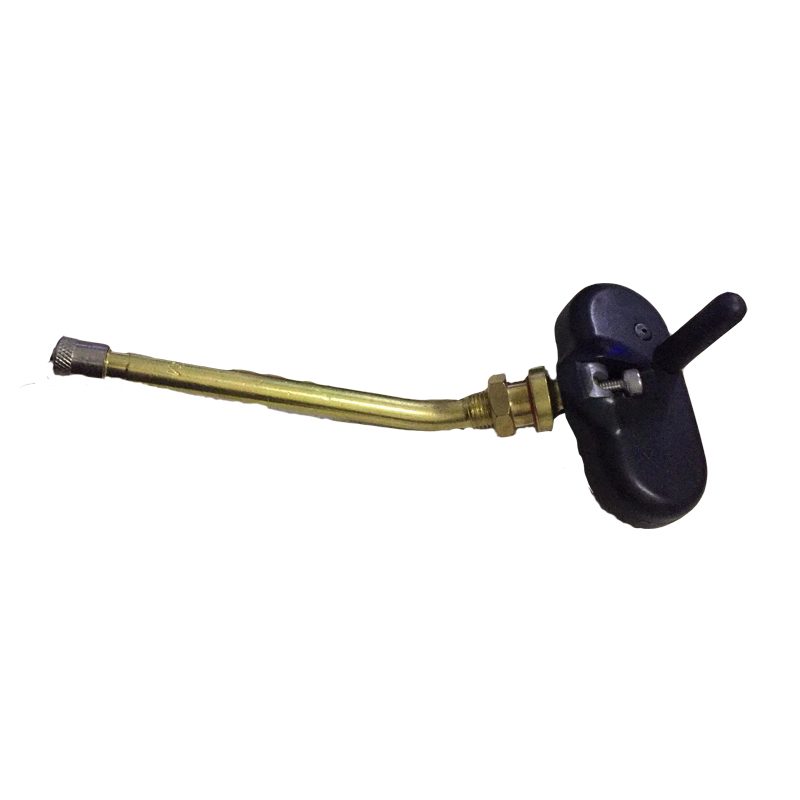

Internal valve sensor — sealed in-tire mounting, protected from impact.
Receiver — up to 250 sensors, multi-bus output, 9–52 V DC.
Repeater — ≥ 100 m relay, IP67, for long chassis.
7" cab display — 800 × 480, DC 9–35 V, IP65.
Interface matrix
| Interface | Typical use |
|---|---|
| CAN | Vehicle control systems; CAN 2.0B, 250 kbps, 500 ms cycle |
| RS485 | Industrial fieldbus, long runs, multi-drop |
| Profinet | Siemens PLC integration over industrial Ethernet |
| RS232 | Legacy serial equipment retrofit |
| Modbus RTU | Industrial instruments and PLCs |
Applicable equipment
- Rubber-tyred gantry cranes (RTG), 8 / 16 wheel
- Reach stackers and container stackers
- Mining dump trucks, wide-body trucks, articulated haulers, scrapers
- Mobile cranes, concrete mixers, trailers
- Multi-axle heavy transport — beam carriers up to 224 wheels
- Automated guided vehicles and aircraft tractors
- City buses and commercial vehicle fleets
Note on photos

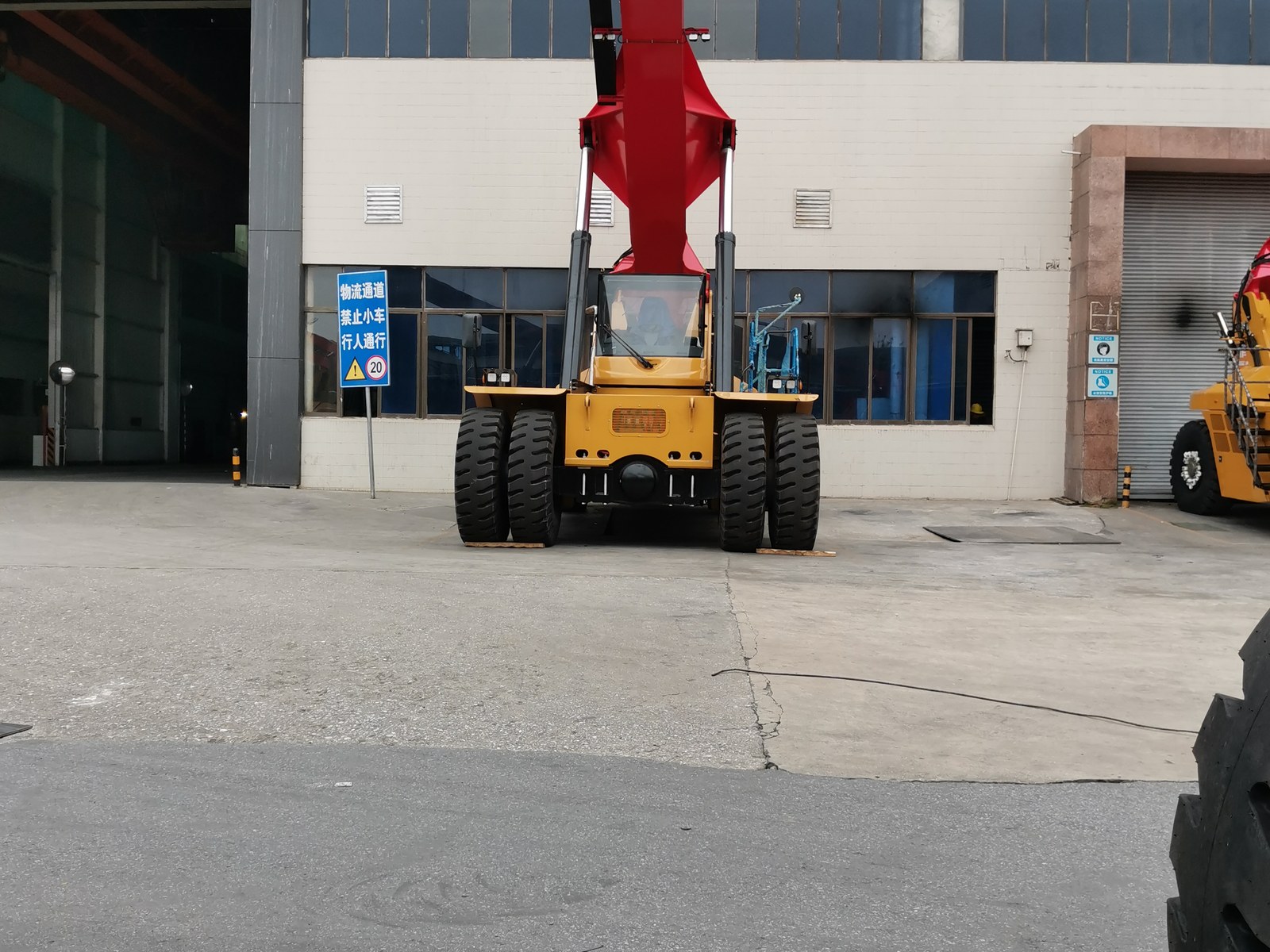

Field photos on this site show systems delivered between 2018 and 2023, i.e. the previous hardware generation. They document real deployments and installation practice; current-generation housings and a new 7" TFT touch display are in development.
Configuration examples
| Application | Receiver | Repeater | Sensors |
|---|---|---|---|
| 8-wheel RTG | 1 | 1 | 8 |
| 16-wheel RTG | 1 | 3 | 16 |
| Reach stacker / container stacker | 1 | 1 | per wheel count |
| 160-wheel beam carrier | 2 (incl. two 7" displays) | 12 | 160 |
| Multi-axle heavy transport (max) | 2 | 12+ | up to 250 |
24 V / 12 V vehicle systems supported (9–52 V DC input). Tell us the wheel count and controller type, and we will return a wiring plan.
Request a TR100 configuration
Send the machine model, wheel count and target interface. Samples for evaluation are available on request.
